APC Smart-Ups Vt 10Kva

Forsiden Datamaskiner UPS APC Smart-Ups Vt 10Kva

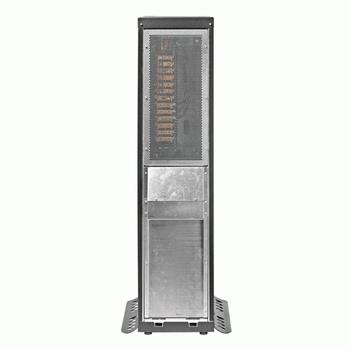

APC Smart-Ups Vt 10Kva (SUVTP10KF1B2)
APC Smart-Ups Vt 10Kva (SUVTP10KF1B2)
APC Smart-Ups Vt 10Kva (SUVTP10KF1B2)
APC Smart-Ups Vt 10Kva (SUVTP10KF1B2)

APC Smart-Ups Vt 10Kva

Varenr.:
SUVTP10KF1B2
  • Kapasitet 10kVA
  • Produkt Ekstern UPS
176 841,-
221 051,25 inkl. mva
Beskrivelse

APC Smart-UPS VT 10kVA 208V with 1 Batt Mod Exp to 2, Int Maint Bypass, Parallel Capable


SUVTP10KF1B2

APC Smart-UPS VT, 8000 Watts / 10 kVA,Input 208V 3PH / Output 120V, 208V, 208V 3PH, Extended runtime model
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Power modules ship installed, User Manual, Web/SNMP Management Card

Features

Parallel-capacity capable
Parallel-redundant capable

Output

Output Power Capacity
8000 Watts / 10 kVA
Max Configurable Power
8000 Watts / 10 kVA
Nominal Output Voltage
120V,208V,208V 3PH
Output Voltage Note
Configurable for 208 and 220V - 3 Phase
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 - 63 Hz for 60 Hz nominal
Crest Factor
Unlimited
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 5-wire (3PH + N + G)
(1) Screw Terminals
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Bypass
Built-in Maintenance Bypass,Built-in Static Bypass

Input

Nominal Input Voltage
208V 3PH
Input Frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
165 - 240V
Other Input Voltages
220
Maximum Input Current
27A
Input Breaker Capacity
35A
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
3-pole breaker

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Available Battery Slots
1
Typical recharge time
5 hour(s)
Replacement Battery
SYBT4
RBC™ Quantity
1
Typical Backup Time
at Half Load
18.0 minutes (4000 Watts)
Typical Backup Time
at Full Load
5.5 minutes (8000 Watts)
Runtime Chart
Smart-UPS VT
Extended Run Options
APC Smart-UPS VT 10kVA 208V with 1 Batt Mod Exp to 2, Int Maint Bypass, Parallel Capable

Communications & Management

Pre-Installed SmartSlot™ Cards
AP9619
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Physical

Maximum Height
59.00 inches (1499 mm)
Maximum Width
14.00 inches (356 mm)
Maximum Depth
32.99 inches (838 mm)
Net Weight
671.00 lbs. (305.00 kg)
Shipping Weight
739.00 lbs. (335.91 kg)
Shipping Height
64.70 inches (1643 mm)
Shipping Width
25.60 inches (650 mm)
Shipping Depth
41.80 inches (1062 mm)
Color
Black

Environmental

Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3333 feet (0-999,9 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
54.00 dBA
Online Thermal Dissipation
2047.00 BTU/hr
Protection Class
NEMA 1

Conformance

Regulatory Approvals
cUL Listed,CE,EN 50091-2,EN/IEC 62040-2,EN/IEC 62040-1-1,FCC Part 15 Class A,ISO 14001,ISO 9001,UL 1778
Standard Warranty
1 year on-site repair or replace with factory authorized Start-UP
Protection Class
NEMA 1
