AMD RYZEN 7 8700G AI 5.10GHZ 8 CORE SKT AM5 24MB 65W 780M RADEON BOX CHIP
|
|
AMD RYZEN 7 8700G AI 5.10GHZ 8 CORE SKT AM5 24MB 65W 780M RADEON BOX CHIP
Varenr.:
100-100001236BOX
-
Prosessorsokkel
Socket AM5
-
Prosessorfrekvens
4.2GHz
-
CPU-kjerner
8
-
CPU-tråder
16
-
Grafikk kjerne
AMD Radeon™ 780M
-
CPU-familie
AMD Ryzen™ 7
-
TDP
65W
|

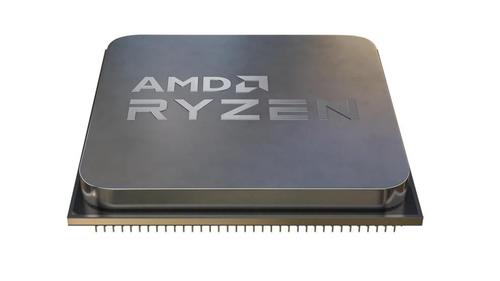

AMD Ryzen™ 7 8700G Desktop Processor
AMD Ryzen™ 7 8700G with AMD Ryzen AI is the ultimate all-in-one desktop processor with AMD Radeon™ 780M Graphics capabilities
Specifications:
General
- Name
- AMD Ryzen™ 7 8700G
- Family
- Ryzen
- Series
- Ryzen 8000 Series
- Form Factor
- Desktops
- AMD PRO Technologies
- No
- Consumer Use
- Yes
- Regional Availability
- Global
- Former Codename
- Phoenix
- Architecture
- Zen 4
- # of CPU Cores
- 8
- Multithreading (SMT)
- Yes
- # of Threads
- 16
- Max. Boost Clock
- Up to 5.1 GHz
- Base Clock
- 4.2 GHz
- L2 Cache
- 8 MB
- L3 Cache
- 16 MB
- Default TDP
- 65W
- AMD Configurable TDP (cTDP)
- 45-65W
- Processor Technology for CPU Cores
- TSMC 4nm FinFET
- CPU Compute Die (CCD) Size
- 178mm²
- Package Die Count
- 1
- Unlocked for Overclocking
- Yes
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- CPU Socket
- AM5
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Max. Operating Temperature (Tjmax)
- 95°C
- Launch Date
- 1/31/2024
- *OS Support
- Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
- Native USB 4 (40Gbps) Ports
- 2
- Native USB 3.2 Gen 2 (10Gbps) Ports
- 2
- Native USB 2.0 (480Mbps) Ports
- 1
- PCI Express® Version
- PCIe® 4.0
- Native PCIe® Lanes (Total/Usable)
- 20 , 16
- NVMe Support
- Boot , RAID0 , RAID1
- System Memory Type
- DDR5
- Memory Channels
- 2
- Max. Memory
- 256 GB
- System Memory Subtype
- UDIMM
- Max Memory Speed
2x1R
DDR5-5200
2x2R
DDR5-5200
4x1R
DDR5-3600
4x2R
DDR5-3600
Graphics Capabilities
- Graphics Model
- AMD Radeon™ 780M
- Graphics Core Count
- 12
- Graphics Frequency
- 2900 MHz
- DirectX® Version
- 12
- DisplayPort™ Version
- 2.1
- DisplayPort Extensions
- Adaptive-Sync , HDR Metadata , UHBR10
- DisplayPort Max Refresh Rates (SDR)
- 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
- DisplayPort Max Refresh Rates (HDR)
- 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
- HDMI® Version
- 2.1
- HDCP Version Supported
- 2.3
- USB Type-C® DisplayPort™ Alternate Mode
- Yes
- Multi-Monitor Support
- Yes
- Max Displays
- 4
- AMD FreeSync™
- Yes
- Wireless Display
- Miracast
- Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
- Max Video Decode Bandwidth
1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
- AMD SmartAccess Memory
- Available
